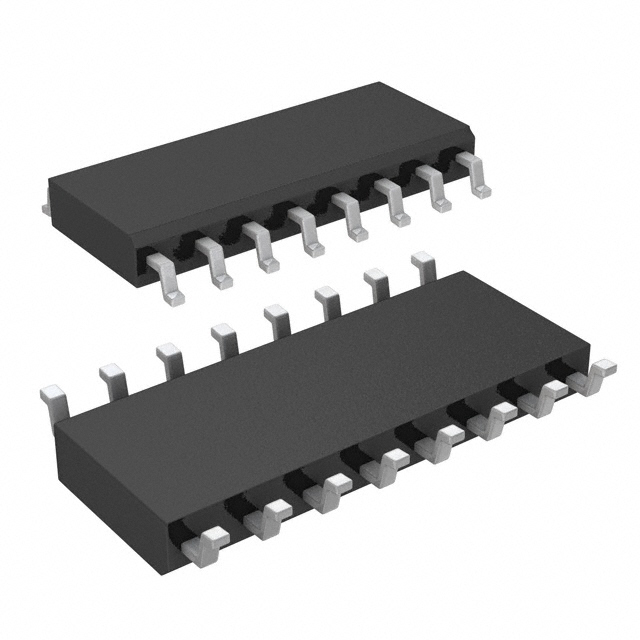

AM26LV32ID

Product Summary

The AM26LV32ID is a low-voltage high-speed quadruple differential line receiver with 3-state outputs is designed to be similar to TIA/EIA-422-B and ITU Recommendation V.11 receivers with reduced common-mode voltage range due to reduced supply voltage. The AM26LV32ID is optimized for balanced bus transmission at switching rates up to 32 MHz. The enable function is common to all four receivers and offers a choice of active-high or active-low inputs. The 3-state outputs permit connection directly to a bus-organized system. Each device features receiver high input impedance and input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range from -0.3 V to 5.5 V. When the inputs are open circuited, the outputs are in the high logic state. The AM26LV32ID is designed using the Texas Instruments (TI.) proprietary LinIMPACT-C60 technology, facilitating ultra-low power consumption without sacrificing speed. The AM26LV32ID offers optimum performance when used with the AM26LV31 quadruple line drivers. The AM26LV32ID is characterized for operation from 0℃ to 70℃. The AM26LV32ID is characterized for operation from -45℃ to 85℃.

Parametrics

AM26LV32ID absolute maximum ratings: (1)Supply voltage range, VCC: 0.3 V to 6 V; (2)Input voltage range, VI (A or B inputs): 4 V to 8 V; (3)Differential input voltage, VID: ±12 V; (4)Enable input voltage range: 0.3 V to 6 V; (5)Output voltage range, VO: 0.3 V to 6 V; (6)Maximum output current, IO: ±25 mA; (7)Package thermal impedance, θJA: D package 73℃/W, NS package 64℃/W; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (9)Storage temperature range, Tstg: 65℃ to 150℃.

Features

AM26LV32ID features: (1)Switching Rates up to 32 MHz; (2)Operates From Single 3.3-V Supply; (3)Ultra-Low Power Dissipation: 27 mW Typ; (4)Open-Circuit, Short-Circuit, and Terminated Fail-Safe; (5)-0.3-V to 5.5-V Common-Mode Range With ±200-mV Sensitivity; (6)Accepts 5-V Logic Inputs With 3.3-V VCC; (7)Input Hysteresis: 50 mV Typ; (8)235 mW With Four Receivers at 32 MHz; (9)Pin-to-Pin Compatible With AM26C32, AM26LS32, and MB570.

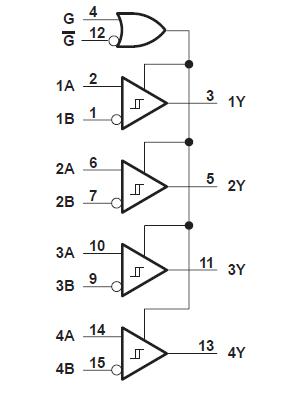

Diagrams
