CM400DY-12H

400 A, 600 V, IGBT module, 1500 W, CM400DY-12H

Rated 5 Rating 5 | reviews | Write a review

Price:: US $50.00~70.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $50.00~70.00

PartNumber:: CM400DY-12H

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-16

From Other Seller

Part Number:CM400DY-12H
US $50.00 - 70.00
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

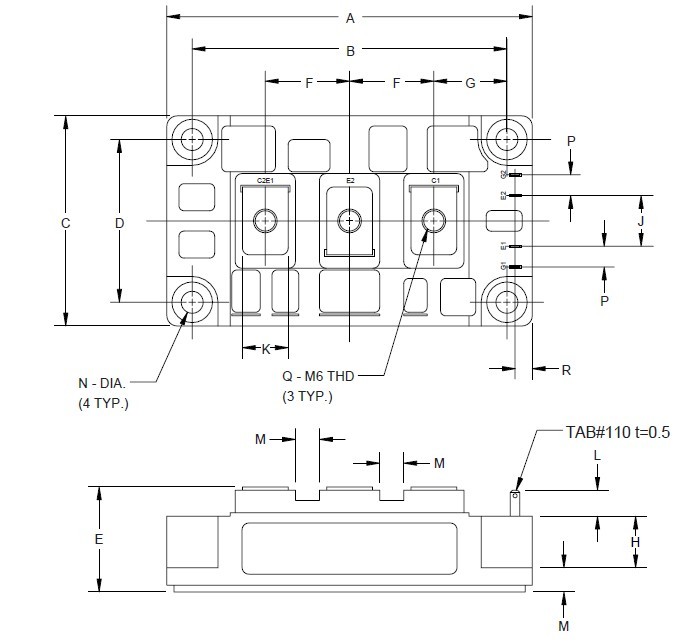

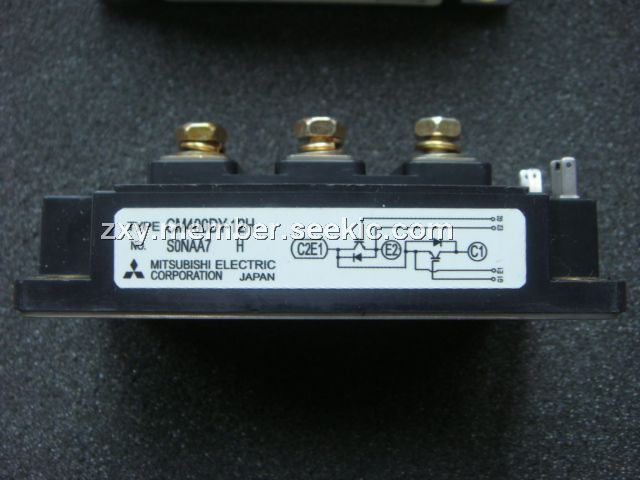

The CM400DY-12H is a Mitsubishi IGBT module which is designed for use in switching applications. The CM400DY-12H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Applications of the CM400DY-12H are: AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.

Parametrics

CM400DY-12H absolute maximum ratings: (1)Junction Temperature Tj: –40 to 150 ℃; (2)Storage Temperature Tstg: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 400 Amperes; (6)Peak Collector Current ICM: 800 Amperes; (7)Emitter Current** (TC = 25℃) IE: 400 Amperes; (8)Peak Emitter Current** IEM: 800 Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃) Pc: 1500 Watts.

Features

CM400DY-12H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
