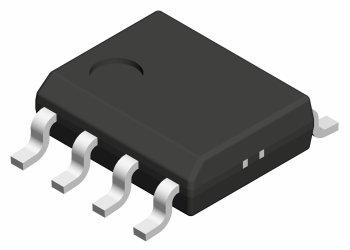

DS90LV018ATM

single CMOS differential line receiver, SOP8, -0.3V to +4V, 1025 mW, 400 Mbps switching rates

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.50

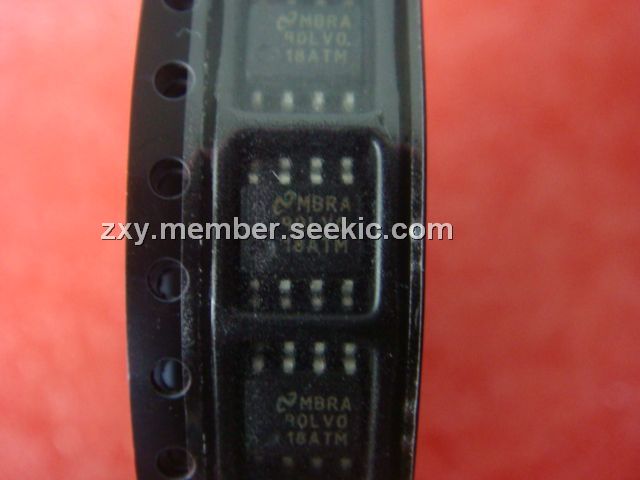

PartNumber:: DS90LV018ATM

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-01

From Other Seller

Part Number:DS90LV018ATM
US $0.10 - 1.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS90LV018ATM is a single CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise and high data rates. The DS90LV018ATM is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. TheDS90LV018ATM accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receiver also supports open, shorted and terminated (100Ω) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The DS90LV018ATM has a flow-through design for easy PCB layout.

Parametrics

DS90LV018ATM absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)Input Voltage (RIN+, RIN.): -0.3V to +3.9V; (3)Output Voltage (ROUT): -0.3V to (VCC + 0.3V); (4)Maximum Package Power Dissipation @ +25℃: 1025 mW; (5)Storage Temperature Range: 65 to +150℃; (6)Lead Temperature Range Soldering (4 sec.): +260℃; (7)Maximum Junction Temperature: +150℃; (8)ESD Rating, (HBM 1.5 kΩ, 100 pF): ≥ 7 kV; (EIAJ 0Ω, 200 pF): ≥ 500 V.

Features

DS90LV018ATM features: (1)>400 Mbps (200 MHz) switching rates; (2)50 ps differential skew (typical); (3)2.5 ns maximum propagation delay; (4)3.3V power supply design; (5)Flow-through pinout; (6)Power down high impedance on LVDS inputs; (7)Low Power design (18mW @ 3.3V static); (8)Interoperable with existing 5V LVDS networks; (9)Accepts small swing (350 mV typical) differential signal levels; (10)Supports open, short and terminated input fail-safe; (11)Conforms to ANSI/TIA/EIA-644 Standard; (12)Industrial temperature operating range (-40 to +85℃); (13)Available in SOIC package.
