LM3704YCMMX-232

LM3704YCMMX-232, Microprocessor Supervisory Circuit, DIP, 150V, 1.5KV, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.75~0.75 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.75~0.75

PartNumber:: LM3704YCMMX-232

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 700/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM3704YCMMX-232
US $0.75 - 0.75
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

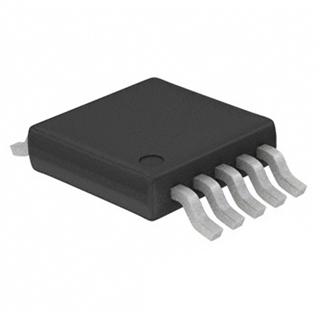

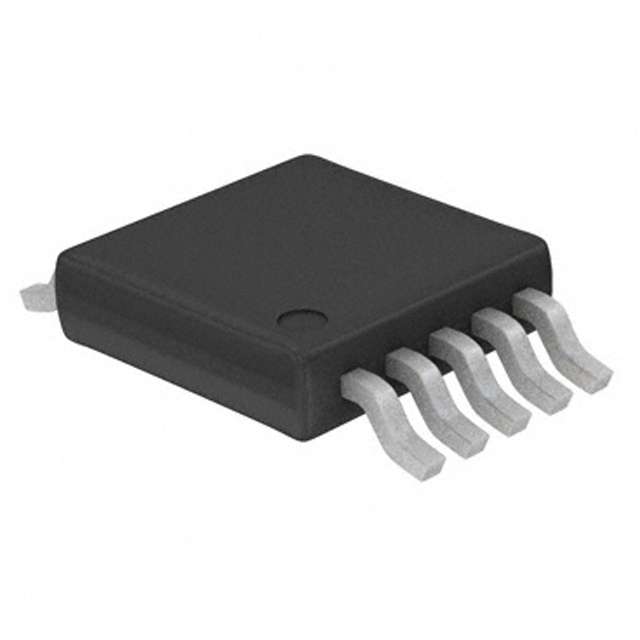

The LM3704YCMMX-232 is a Microprocessor Supervisory Circuit. The LM3704YCMMX-232 provides the maximum flexibility for monitoring power supplies and battery controlled functions in systems without backup batteries. The LM3704YCMMX-232 is available in MSOP-10 and 9-bump micro SMD packages.

Parametrics

LM3704YCMMX-232 absolute maximum ratings: (1)Supply Voltage (VCC) : -0.3V to 6.0V; (2)All Other Inputs : -0.3V to VCC + 0.3V; (3)ESD Ratings Human Body Model : 1.5kV; (4)Machine Model : 150V.

Features

LM3704YCMMX-232 features: (1)Standard Reset Threshold voltage: 3.08V; (2)Custom Reset Threshold voltages: For other voltages between 2.2V and 5.0V in 10mV increments, contact National Semiconductor Corp; (3)No external components required; (4)Manual-Reset input; (5)RESET (LM3704) or RESET (LM3705) outputs; (6)Precision supply voltage monitor; (7)Factory programmable Reset Timeout Delay; (8)Separate Power Fail comparator; (9)Available in micro SMD package for minimum footprint; (10)±0.5% Reset threshold accuracy at room temperature; (11)±2% Reset threshold accuracy over temperature extremes; (12)Reset assertion down to 1V VCC (RESET option only); (13)28 μA VCC supply current.
