Product Summary
The LM556CN is a Dual timing circuit which is a highly stable controller capable of producing accurate time delays or oscillation. Timing is provided by an external resistor and capacitor for each timing function. The LM556CN operates independently of each other sharing only VCC and ground. The circuit may be triggered and reset on falling waveforms. The output structures may sink or source 200mA. Applications include: Precision timing, Pulse generation, Sequential timing, Time delay generation, Pulse width modulation, Pulse position modulation and Linear ramp generator.
Parametrics
LM556CN absolute maximum ratings: (1)Supply Voltage: +18V; (2)Power Dissipation: 1620 mW; (3)Operating Temperature Ranges: 0℃ to +70℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Soldering Information Dual-In-Line Package Soldering (10 Seconds): 260℃; (6)Small Outline Packages Vapor Phase (60 Seconds): 215℃; (7)Small Outline Packages Infrared (15 Seconds): 220℃.
Features
LM556CN features: (1)Direct replacement for SE556/NE556; (2)Timing from microseconds through hours; (3)Operates in both astable and monostable modes; (4)Replaces two 555 timers; (5)Adjustable duty cycle; (6)Output can source or sink 200mA; (7)Output and supply TTL compatible; (8)Temperature stability better than 0.005% per ℃; (9)Normally on and normally off output.

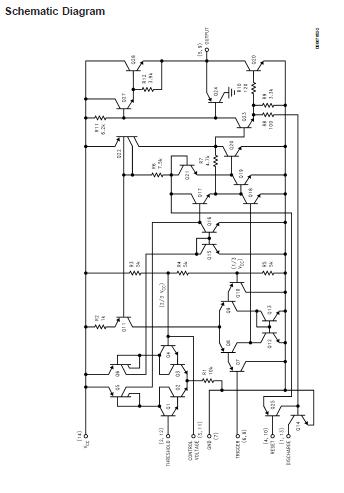

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM556CN |
National Semiconductor (TI) |
Timers & Support Products |
Data Sheet |
|
|
||||||||||||
|
LM556CN/NOPB |
National Semiconductor (TI) |
Timers & Support Products DUAL TIMER |
Data Sheet |
|
|
||||||||||||
