Product Summary

The LM6132AIM is a Low Power 10 MHz Rail-to-Rail I/O Operational Amplifier. It provides new levels of speed vs power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 μA/amp supply current, the 10 MHz gain-bandwidth of the LM6132AIM supports new portable applications where higher power devices unacceptably drain battery life. The LM6132AIM can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. Operating on supplies from 2.7V to over 24V, the LM6132AIM is excellent for a very wide range of applications, from battery operated systems with large bandwidth requirements to high speed instrumentation. The applications of the LM6132AIM are Battery operated instrumentation, Instrumentation Amplifiers, Portable scanners, Wireless communications, Flat panel display driver.

Parametrics

LM6132AIM absolute maximum ratings: (1)ESD Tolerance:2500V; (2)Differential Input Voltage:15V; (3)Voltage at Input/Output Pin (V+)+0.3V, (V-)-0.3V; (4)Supply Voltage (V+–V-):35V; (5)Current at Input Pin:±10 mA; (6)Current at Output Pin:±25 mA; (7)Current at Power Supply Pin:50 mA; (8)Lead Temp. (soldering, 10 sec.):260℃; (9)Storage Temperature Range:-65℃ to +150℃; (10)Junction Temperature:150℃.

Features

LM6132AIM features: (1)Rail-to-Rail input CMVR -0.25V to 5.25V; (2)Rail-to-Rail output swing 0.01V to 4.99V; (3)High gain-bandwidth, 10 MHz at 20 kHz; (4)Slew rate 12 V/μs; (5)Low supply current 360 μA/Amp; (6)Wide supply range 2.7V to over 24V; (7)CMRR 100 dB; (8)Gain 100 dB with RL = 10k; (9)PSRR 82 dB.

Diagrams

LM6132AIM Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

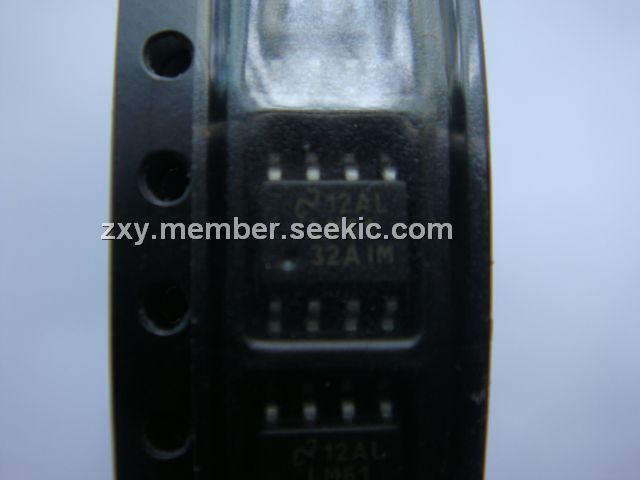

LM6132AIM
LM6132AIM

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-285: $0.95
285-570: $0.93
570-760: $0.91
760-1045: $0.89
LM6132AIM/NOPB
LM6132AIM/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps 7Mhz,350Ua Supl.Cur Dual Amp

Data Sheet

0-1: $1.79
1-10: $1.61
10-25: $1.43
25-50: $1.35
LM6132AIMX/NOPB
LM6132AIMX/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-1: $1.79
1-10: $1.61
10-25: $1.43
25-50: $1.35
LM6132AIMX
LM6132AIMX

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-2500: $0.89
