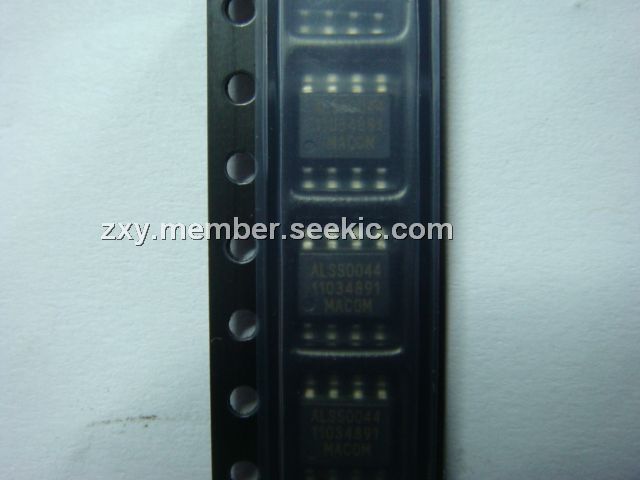

MAALSS0044TR-3000

Low Noise Amplifier, SOP8, 1.5 - 1.6 GHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: MAALSS0044TR-3000

Brand:: M/A-COM Technology Solutions Inc. - MACOM | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-01

From Other Seller

Part Number:MAALSS0044TR-3000
US $1.00 - 2.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAALSS0044TR-3000 is a high performance GaAs MMIC low noise amplifier in a lead-free SOIC-8 surface mount package. The MAALSS0044TR-3000 employs a fully monolithic design which eliminates the need for external tuning networks. It can be biased using 3- or 5- volt supplies and has an option for biasing at higher currents for increased dynamic range. The MAALSS0044TR-3000 is ideally suited for use where low noise figure, high gain, high dynamic range and low power consumption are required. Typical applications include receiver front ends in the Global Positioning System (GPS) and Japanese Personal Digital Cellular (PDC-1500)markets, as well as standard gain blocks, buffer amps, driver amps and IF amps in both fixed and portable systems.

Parametrics

MAALSS0044TR-3000 absolute maximum ratings: (1)VDD: +10 VDC; (2)Input Power: +17 dBm; (3)Current: 30 mA; (4)Channel Temperature: +150℃; (5)Operating Temperature: -40℃ to +85℃; (6)Storage Temperature: -65℃ to +150℃.

Features

MAALSS0044TR-3000 features: (1)Low Noise Figure: 1.55 dB; (2)High Gain: 21 dB; (3)Low Power Consumption: 3 to 5 V, 8 mA; (4)High Dynamic Range; (5)DC Decoupled RF Input and Output; (6)No External RF Tuning Elements Necessary; (7)Lead-Free SOIC-8 Package; (8)100% Matte Tin Plating over Copper; (9)Halogen-Free Green Mold Compound; (10)260℃ Reflow Compatible.
