Product Summary

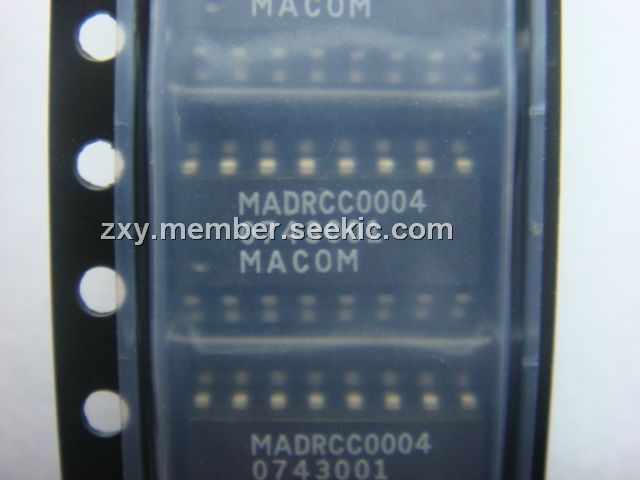

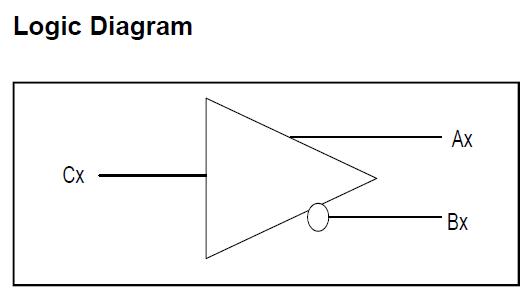

The MADRCC0004TR is a Quad channel driver used to translate TTL control inputs into gate voltages for GaAs FET microwave switches and attenuators. High speed analog CMOS technology of MADRCC0004TR is utilized to achieve low power dissipation at moderate to high speeds, encompassing most microwave switching applications.
Parametrics
MADRCC0004TR absolute maximum ratings: (1)VCC: -5V to + 6.0 V; (2)VEE: - 6.0 V to - 5 V; (3)VCC: - VEE 12 V; (4)V IN: VCC + 5 V; (5)V OUT: VEE - 5 V; (6)Storage Temperature: -65℃ to +150℃; (7)Operating Temperature: -40℃ to +85℃.
Features
MADRCC0004TR features: (1)High Speed CMOS Technology; (2)Complementary Outputs; (3)Positive Voltage Control; (4)Low Power Dissipation; (5)Plastic SOIC Package for SMT Applications; (6)Tape and Reel Packaging Available; (7)Lead-Free SOIC-16 Package; (8)100% Matte Tin Plating over Copper; (9)Halogen-Free "Green" Mold Compound; (10)260℃ Reflow Compatible; (11)RoHS* Compliant Version of DR65-0001.
