Product Summary

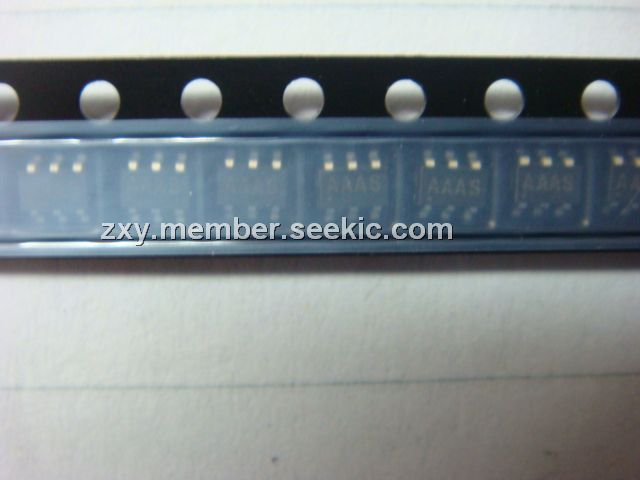

The MAX2681EUT AAAS miniature, low-cost, low-noise downconverter mixer is designed for lowvoltage operation and is ideal for use in portable communications equipment. Signals at the RF input port are mixed with signals at the local oscillator (LO) port using a double-balanced mixer. MAX2681EUT AAAS operates with RF input frequencies between 400MHz and 2500MHz, and downconvert to IF output frequencies between 10MHz and 500MHz.
Parametrics
MAX2681EUT AAAS absolute maximum ratings: (1)VCC to GND: -0.3V to +6.0V; (2)RFIN Input Power (50Ω Source): +10dBm; (3)LO Input Power (50Ω Source): +10dBm; (4)SHDN, IFOUT, RFIN to GND: -0.3V to (VCC + 0.3V); (5)LO to GND:(VCC - 1V) to (VCC + 0.3V); (6)Continuous Power Dissipation (TA = +70℃ ), SOT23-6 (derate 8.7mW/℃ above +70℃ ): 696mW; (7)Operating Temperature Range: -40℃ to +85℃ ; (8)Junction Temperature: +150℃ ; (9)Storage Temperature Range: -65℃ to +160℃ ; (10)Lead Temperature (soldering, 10s): +300℃ .
Features
MAX2681EUT AAAS features: (1)400MHz to 2.5GHz Operation; (2)+2.7V to +5.5V Single-Supply Operation; (3)+1.0dBm at 8.7mA (MAX2681); (4)<0.1µA Low-Power Shutdown Mode; (5)Ultra-Small Surface-Mount Packaging.

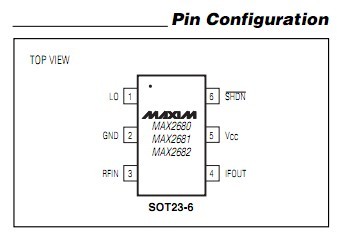

Diagrams
 |
