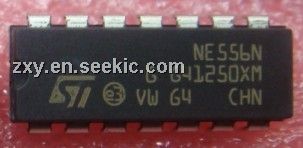

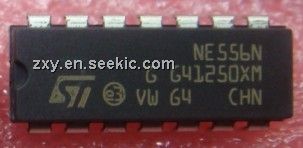

NE556N

NE556N, Dual timer, DIP, 800mW, +16.0V, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	0.10 / Piece

PartNumber:: NE556N

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sophia's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-27

From Other Seller

Part Number:NE556N
US $0.10 - 0.10
NE556N

US $0.10 - 0.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The NE556N is a Dual timer. The NE556N is a highly stable controller capable of producing accurate time delays or oscillation. Timing is provided by an external resistor and capacitor for each timing function. The two timers operate independently of each other, sharing only VCC and ground. The NE556N may be triggered and reset on falling waveforms. The output structures may sink or source 200mA. The applications of the NE556N include Precision timing, Sequential timing, Pulse shaping, Pulse generator, Missing pulse detector, Tone burst generator, Pulse width modulation, Time delay generator, Frequency division, Touch-Tone[encoder, Industrial controls, Pulse position modulation, Appliance timing, Traffic light control.

Parametrics

NE556N absolute maximum ratings: (1)Supply voltage: +16 V; (2)Maximum allowable power dissipation: 800 mW; (3)Operating temperature range: 0 to +70 ℃; (4)Storage temperature range: -65 to +150 ℃; (5)Lead soldering temperature (10sec max): +300 ℃.

Features

NE556N features: (1)Turn-off time less than 2ms (556-1); (2)Maximum operating frequency >500kHz (556-1); (3)Timing from microseconds to hours; (4)Replaces two 555 timers; (5)Operates in both astable and monostable modes; (6)High output current; (7)Adjustable duty cycle; (8)TTL compatible; (9)Temperature stability of 0.005%/℃; (10)SE556-1 compliant to MIL-STD or JAN.
