Product Summary

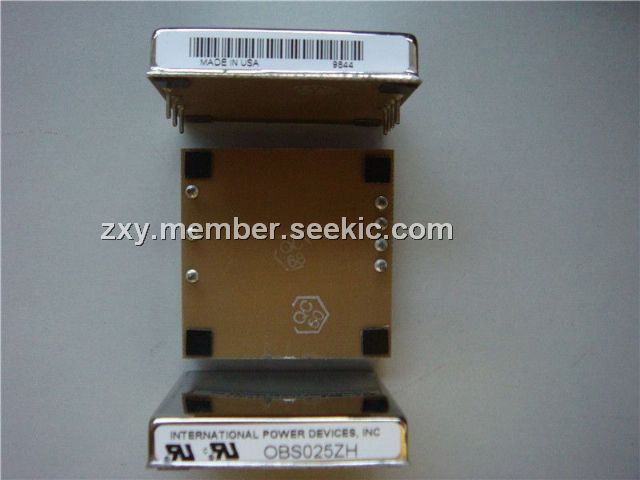

The OBS025ZH is an OBS single output DC/DC converter. The OBS025ZH provides up to 25 Watts of output power in an industry standard package and footprint. The OBS025ZH features excellent efficiency, six sided shielding, and fixed switching frequency. With 100℃ case operation, the OBS converters are especially suited to telecom, networking, and industrial applications. It is 100% surface-mount construction and fully compatible with production board washing processes.
Parametrics
OBS025ZH absolute maximum ratings: (1)Voltage Range: 24 VDC Nominal: 18V to 36V, 48 VDC Nominal: 34V to 75V; (2)Reflected Ripple: 25mA; (3)Input Reverse Voltage Protection: Shunt Diode; (4)Operating Range: -40℃ to +100℃; (5)Storage Range: -40℃ to +125℃; (6)Setpoint Accuracy: ±1%.
Features
OBS025ZH features: (1)Industry standard package; (2)24 and 48V input versions; (3)25W output power; (4)100℃ baseplate operation; (5)Trim And Enable Pins; (6) Fixed Frequency; (7)1500V Isolation; (8)6-Sided Shielding.

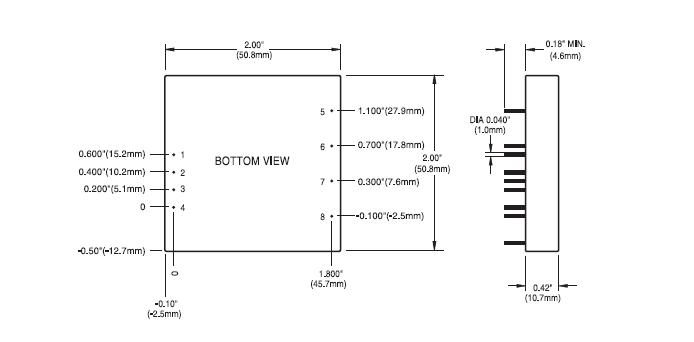

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OBS025ZH |
|
CONVERT DC/DC 12V 25W |
Data Sheet |
|
|
||||||
|
OBS025ZH-S2 |
|
CONVERT DC/DC 12V 25W |
Data Sheet |
|
|
||||||
