Product Summary

The RT9199GSP is a simple, cost-effective and high-speed linear regulator designed to generate termination voltage in double data rate (DDR) memory system to comply with the devices requirements. The RT9199GSP is capable of actively sinking or sourcing up to 2A peak while regulating an output voltage to within 20mV. The output termination voltage can be tightly regulated to track 1/2VDDQ by two external voltage divider resistors or the desired output voltage can be pro-grammed by externally forcing the REFEN pin voltage. The applications of the RT9199GSP include Desktop PCs, Notebooks, and Workstations, Graphics Card Memory Termination, Set Top Boxes, Digital TVs, Printers, Embedded Systems, Active Termination Buses, DDR/II Memory Systems.

Parametrics

RT9199GSP absolute maximum ratings: (1)Input Voltage, VIN: 6V; (2)Control Voltage, VCNTL: 6V; (3)Power Dissipation, PD @ TA = 25℃: 0.909W; (4)Package Thermal Resistance: SOP-8, θJA: 110℃/W, SOP-8, θJC: 60℃/W, SOP-8 (Exposed Pad), θJA: 86℃/W, SOP-8 (Exposed Pad), θJC: 15℃/W; (5)Junction Temperature: 125℃; (6)Lead Temperature (Soldering, 10 sec.): 260℃; (7)Storage Temperature Range: –65℃ to 150℃; (8)ESD Susceptibility: HBM (Human Body Mode): 2kV, MM (Machine Mode): 200V.

Features

RT9199GSP features: (1)Ideal for DDR-II VTT Applications; (2)Sink and Source 2A Peak Current; (3)Integrated Power MOSFETs; (4)Generate Termination Voltage for DDR Memory Interfaces; (5)High Accuracy Output Voltage at Full-Load; (6)Output Adjustment by Two External Resistors; (7)Low External Component Count; (8)Shutdown for Suspend to RAM (STR) Functionality with High-Impedance Output; (9)Current Limiting Protection; (10)On-Chip Thermal Protection; (11)RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

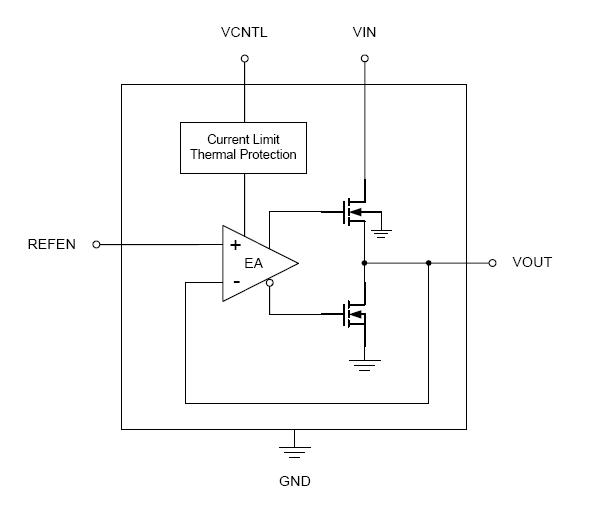

RT9199GSP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

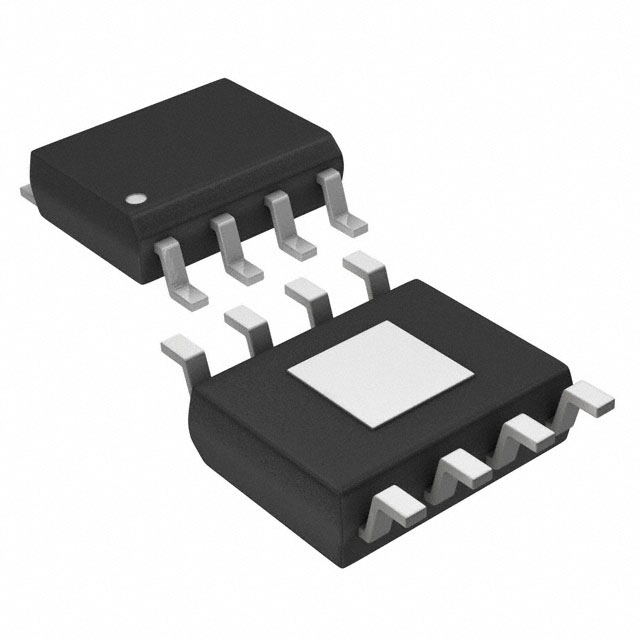

RT9199GSP
RT9199GSP

IC REG BUS TERMINATION 2A 8SOP
Data Sheet
0-1: $0.35
1-10: $0.29
10-25: $0.26
25-100: $0.22
100-250: $0.19
250-500: $0.16
500-1000: $0.12
