RT9724GB, N-MOSFET high-side Power Switch, SOT-23, 6V, 0.458W, 100mΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~0.20

PartNumber:: RT9724GB

Brand:: Richtek Technology Corporation - richtek | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:RT9724GB
US $0.16 - 0.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

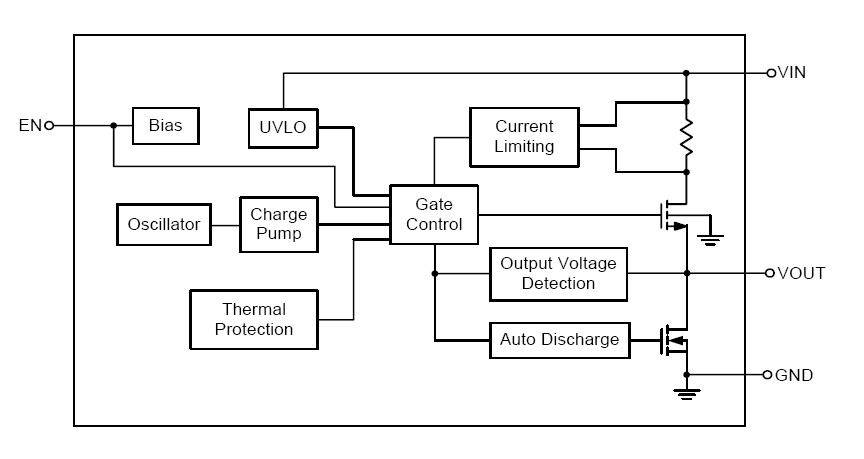

The RT9724GB is a cost-effective, low-voltage single N-MOSFET high-side Power Switch IC. Low switch-on resistance (typ. 100mΩ) and low supply current (typ. 50uA) are realized in this IC. The RT9724GB integrates an overcurrent protection circuit, a short fold back circuit, a thermal shutdown circuit and an under-voltage lockout circuit for overall protection. Besides, a slew rate controlled function is embedded for turn-on rising time control. The RT9724GB is available in SOT-23-5 and WDFN-8L 2x2 package. The application of the RT9724GB include Cellular Phones, Digital still Camera, Hot swap Supplies, Notebook Computers, Personal Communication Devices, Personal Digital Assistants.

Parametrics

RT9724GB absolute maximum ratings: (1)Supply Voltage, VIN: 6V; (2)Enable Input Voltage, EN: -0.3V to 6V; (3)Power Dissipation, PD @ TA = 25℃ SOT-23-5: 0.458W; (4)WDFN-8L 2x2: 0.833W; (5)Package Thermal Resistance (Note 2) SOT-23-5, θJA: 218.1℃/W; (6)WDFN-8L 2x2, θJA: 120℃/W; (7)Junction Temperature: 150℃; (8)Lead Temperature (Soldering, 10 sec.): 260℃; (9)ESD Susceptibility (Note 3); (10)HBM (Human Body Model): 4kV.

Features

RT9724GB features: (1)100mΩ (typ.) N-MOSFET Switch; (2)Operating Range: 2.7V to 5.5V; (3)Reverse Blocking Current; (4)Under Voltage Lockout; (5)Thermal Protection with Foldback; (6)Over Current Protection; (7)Short Circuit Protection; (8)Slew Rate Limited Turn-On Time 3ms (5V); (9)RoHS Compliant and Halogen Free.
