Product Summary
The SN65LVDS047PW is a quad differential linedriver. The SN65LVDS047PW implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3.3V supply rail. Any of the four current-mode drivers will deliver a minimum differential output voltage magnitude of 247 mV into a 100-W load when enabled. The SN65LVDS047PW is characterized for operation from -40℃ to 85℃.
Parametrics
SN65LVDS047PW absolute maximum ratings: (1)(VCC) Supply voltage: -0.3 V to 4 V; (2)VI(DIN) Input voltage range: -0.3 V to (VCC +0.3 V); (3)(EN, EN ) Enable input voltage: -0.3 V to (VCC +0.3 V); (4)VO(DOUT+,DOUT-) Output voltage: -0.5 V to (VCC +0.5 V); (5)(DOUT+,DOUT-) Bus-pin--electrostatic discharge, see (3): ＞10 kV; (6)(DOUT+,(DOUT-) Short circuit duration: Continuous; (7)Storage temperature range: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
SN65LVDS047PW features: (1)＞400 Mbps (200 MHz) Signaling Rates; (2)Flow-Through Pin-out Simplifies PCB Layout; (3)300ps Maximum Differential Skew; (4)Propagation Delay Times 1.8 ns (Typical); (5)3.3 V Power Supply Design; (6)±350 mV Differential Signaling; (7)High Impedance on LVDS Outputs on Power Down; (8)Conforms to TIA/EIA-644 LVDS Standard; (9)Industrial Operating Temperature Range (-40℃ to 85℃); (10) Available in SOIC and TSSOP Packages.

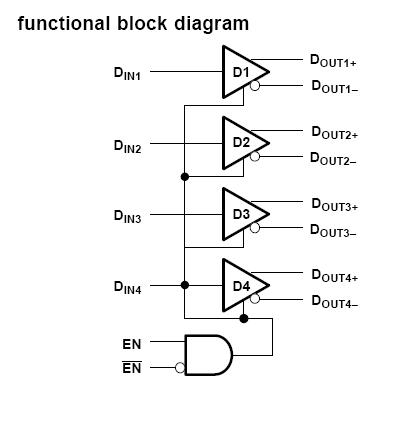

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

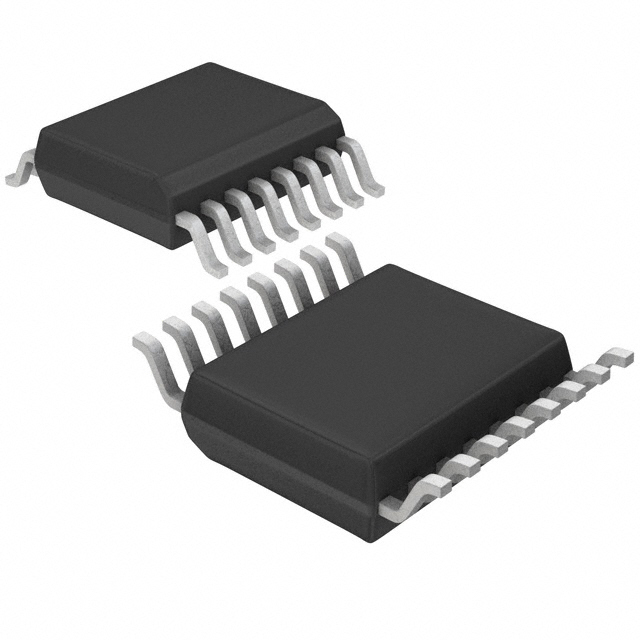

 SN65LVDS047PW |
Texas Instruments |
LVDS Interface IC Quad LVDS Driver |
Data Sheet |
|
|
||||||||||||
|
SN65LVDS047PWG4 |
Texas Instruments |
LVDS Interface IC Quad Transmitter w/Flow-Thru Pinout |
Data Sheet |
|
|
||||||||||||
|
SN65LVDS047PWRG4 |
Texas Instruments |
LVDS Interface IC Quad Transmitter w/Flow-Thru Pinout |
Data Sheet |
|
|
||||||||||||
|
SN65LVDS047PWR |
Texas Instruments |
LVDS Interface IC Quad Transmitter w/Flow-Thru Pinout |
Data Sheet |
|
|
||||||||||||
