Product Summary

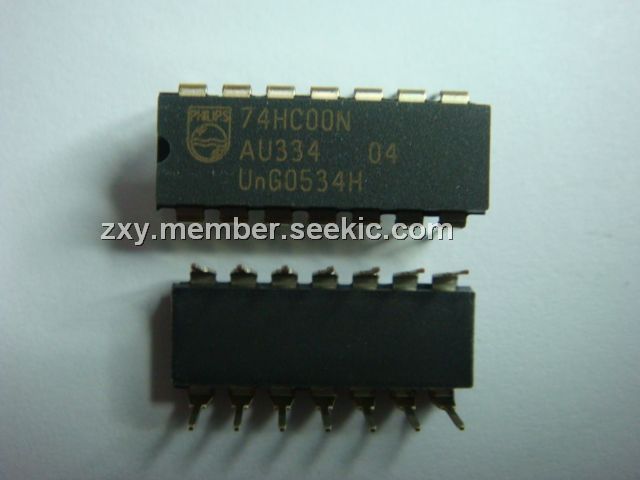

The SN74HC00NSR is a quadruple 2-input positive-nand gate. It contains four independent 2-input NAND gates. It performs the Boolean function Y = A·B or Y = A + B in positive logic.
Parametrics
SN74HC00NSR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5V to 7V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: 76℃/W; (7)Storage temperature range, Tstg: -65 to 150℃.
Features
SN74HC00NSR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 8 ns; (5)±4mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC00NSR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input Positive-NAND gates |
Data Sheet |
|
|
||||||||||||
|
SN74HC00NSRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input Positive-NAND gates |
Data Sheet |
|
|
||||||||||||
|
SN74HC00NSRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input Positive-NAND gates |
Data Sheet |
|
|
||||||||||||
