Product Summary

The JFET input operational amplifier LF444CD is designed for low power applications. It features high input impedance, low input bias current and low input offset current. Advanced design techniques allow for higher slew rates, gain bandwidth products and output swing. The LF444CD device provides for the external null adjustment of input offset voltage. The LF444CD is specified over the commercial temperature range. All are available in plastic dual in–line and SOIC packages.

Parametrics

LF444CD absolute maximum ratings: (1)Supply Voltage (from VCC to VEE) VS: +36 V; (2)Input Differential Voltage Range (Note 1) VIDR: ±30 V; (3)Input Voltage Range (Notes 1 and 2) VIR: ±15 V; (4)Output Short Circuit Duration (Note 3) tSC: Indefinite sec; (5)Operating Junction Temperature (Note 3) TJ: +150 ℃; (6)Storage Temperature Range Tstg: –60 to +150 ℃.

Features

LF444CD features: (1)Low Supply Current: 200 μA/Amplifier; (2)Low Input Bias Current: 5.0 pA; (3)High Gain Bandwidth: 2.0 MHz; (4)High Slew Rate: 6.0 V/μs; (5)High Input Impedance: 1012 Ω; (6)Large Output Voltage Swing: ±14 V; (7)Output Short Circuit Protection.

Diagrams

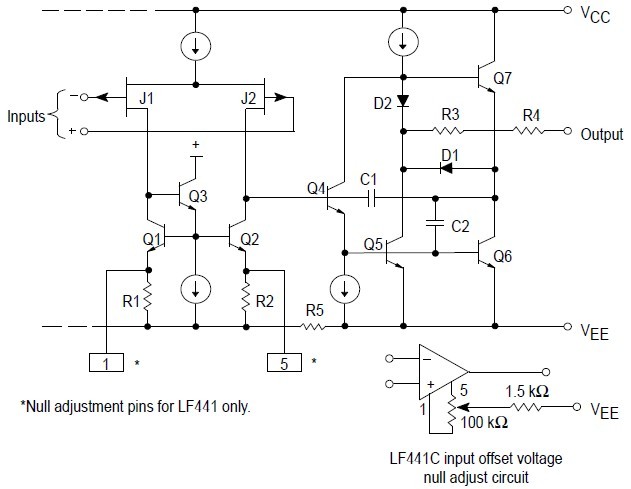

LF444CD Representative Schematic Diagram

LF441
LF441
Other

Data Sheet
Negotiable
LF441C
LF441C
Other

Data Sheet
Negotiable
LF442
LF442
Other

Data Sheet
Negotiable
LF442ACN
LF442ACN
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-200: $2.15
200-280: $1.93
280-520: $1.73
520-1000: $1.46
LF442ACN/NOPB
LF442ACN/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps DUAL LOW PWR JFET IN OP AMP
Data Sheet
0-1: $2.94
1-25: $2.36
25-100: $2.15
100-250: $1.94
LF442AMH
LF442AMH
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-500: $11.86
