LM4835MT

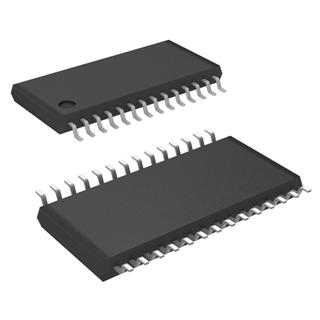

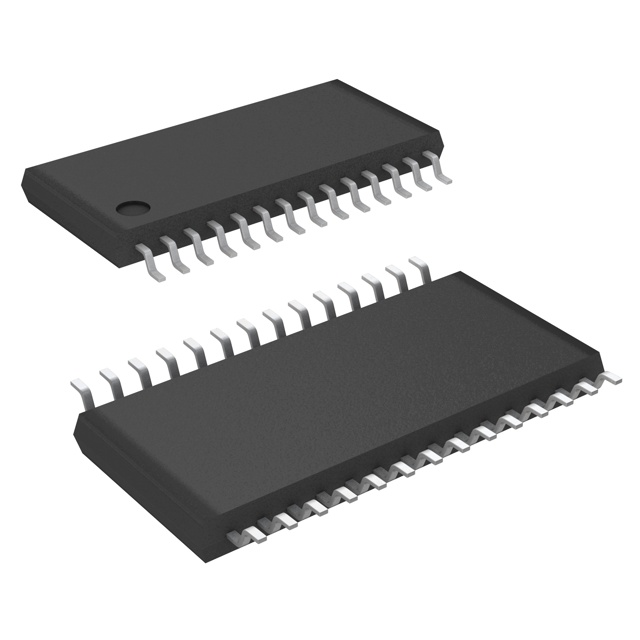

28TSSOP, LM4835MT, 6.0V, Stereo 2W Audio Power Amplifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.88~0.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.88~0.95

PartNumber:: LM4835MT

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM4835MT
US $0.88 - 0.95
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

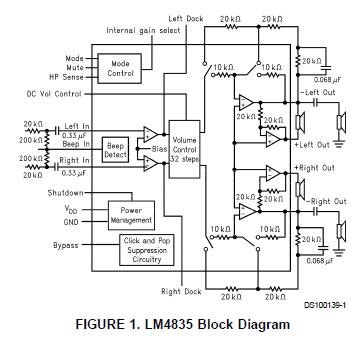

The LM4835MT is a monolithic integrated circuit that provides DC volume control, and stereo bridged audio power amplifiers capable of producing 2W into 4W with less than 1.0% THD or 2.2W into 3W with less than 1.0% THD. Boomer audio integrated circuits were designed specifically to provide high quality audio while requiring a minimum amount of external components. The LM4835MT incorporates a DC volume control, stereo bridged audio power amplifiers and a selectable gain or bass boost, making it optimally suited for multimedia monitors, portable radios, desktop, and portable computer applications. The LM4835MT features an externally controlled, low-power consumption shutdown mode, and both a power amplifier and headphone mute for maximum system flexibility and performance. Applications include: Portable and Desktop Computers, Multimedia Monitors, Portable Radios, PDAs, and Portable TVs.

Parametrics

LM4835MT absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: -65℃ to +150℃; (3)Input Voltage: -0.3V to VDD +0.3V; (4)Power Dissipation: Internally limited; (5)ESD Susceptibility: 2000V; (6)ESD Susceptibility: 200V; (7)Junction Temperature: 150℃; (8)Soldering Small Outline Package Vapor Phase (60 sec.): 215℃; (9)Soldering Small Outline Package Infrared (15 sec.): 220℃.

Features

LM4835MT features: (1)PC98 Compliant; (2)DC Volume Control Interface; (3)System Beep Detect; (4)Stereo switchable bridged/single-ended power amplifiers; (5)Selectable internal/external gain and bass boost configurable; (6)“Click and pop” suppression circuitry; (7)Thermal shutdown protection circuitry.
