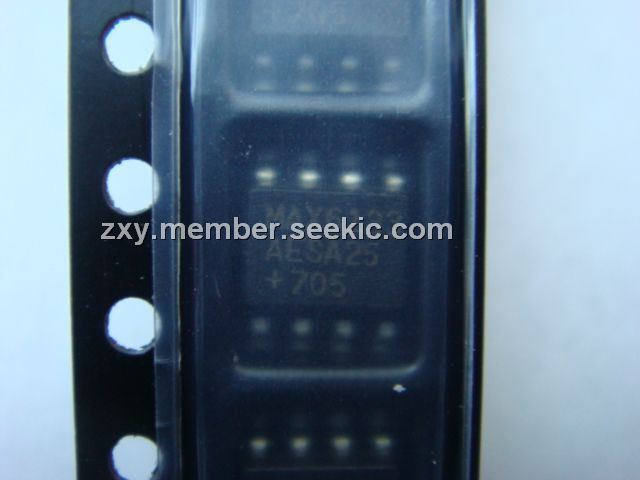

Product Summary

The MAX6133AESA25 is a high-precision, low-power, low-dropout voltage reference. It features a low 3ppm/℃ (max) temperature coefficient and a low dropout voltage (200mV, max). This series-mode device features bandgap technology for low-noise performance and excellent accuracy. Load regulation specifications are guaranteed for source currents up to 15mA. The applications of the MAX6133AESA25 include Precision Regulators, A/D and D/A Converters, Power Supplies, High-Accuracy Industrial and Process Control, Hand-Held Instruments.

Parametrics

MAX6133AESA25 absolute maximum ratings: (1)Voltage (with Respect to GND): IN: -0.3V to +13V, OUT: -0.3V to +6V or (VIN + 0.3V); (2)OUT Short Circuit to IN or GND Duration: 60s; (3)Continuous Power Dissipation (TA = +70℃): 8-Pin μMAX (derate 5.5mW/℃ above +70℃): 362mW, 8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; (4)Operating Temperature Range: -40℃ to +125℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

MAX6133AESA25 features: (1)Low Temperature Coefficient: 3ppm/℃ (max), SO, 5ppm/℃ (max), μMAX; (2)Tiny 5mm × 3mm μMAX Package; (3)Low 200mV (max) Dropout Voltage; (4)Low 40μA Quiescent Current; (5)±0.04% (max) Initial Accuracy; (6)Low 16μVP-P Noise (0.1Hz to 10Hz) (2.5V Output); (7)15mA Output Source-Current Capability; (8)Wide 2.7V to 12.6V Supply Voltage; (9)Excellent Line (30μV/V, max) and Load (0.05mV/mA, max) Regulation.

Diagrams

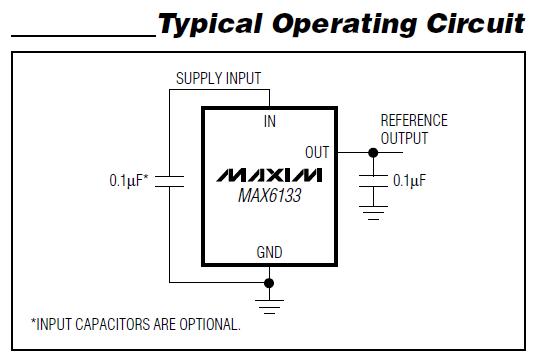

MAX6133AESA25 Typical Operating Circuit
