Product Summary

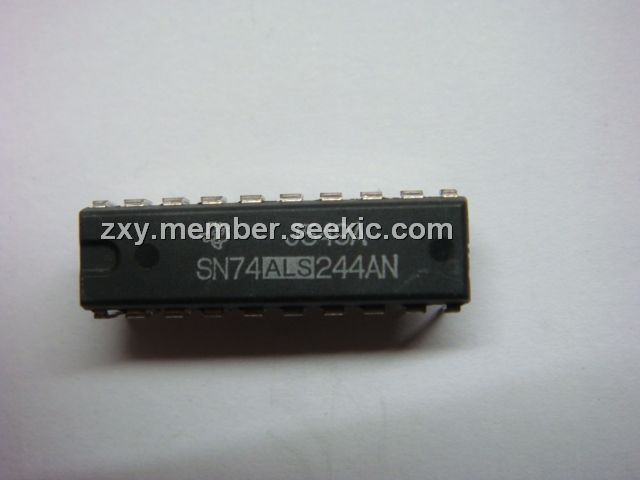

The SN74ALS244AN octal buffer and line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SN74ALS244AN provides the choice of selected combinations of inverting outputs, symmetrical G (active-low input control) inputs, and complementary G and G inputs.

Parametrics

SN74ALS244AN absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage: 7 V; (3)Voltage applied to a disabled 3-state output: 5.5 V; (4)Operating free-air temperature range: –55℃ to 125℃; (5)Storage temperature range: –65℃ to 150℃.

Features

SN74ALS244AN features: (1)3-State Outputs Drive Bus Lines or Buffer Memory Address Registers; (2)PNP inputs Reduce DC Loading; (3)Package Options include Plastic Small Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs; (4)Dependable Texas instruments Quality and Reliability.

Diagrams

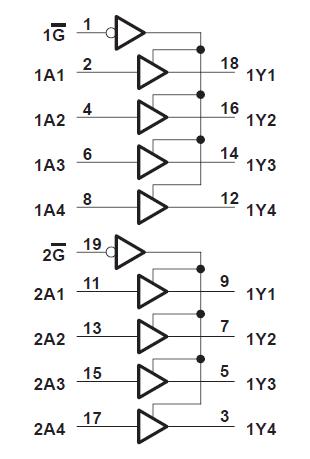

SN74ALS244AN circuit diagram
